Stadium Square LED

Introduction

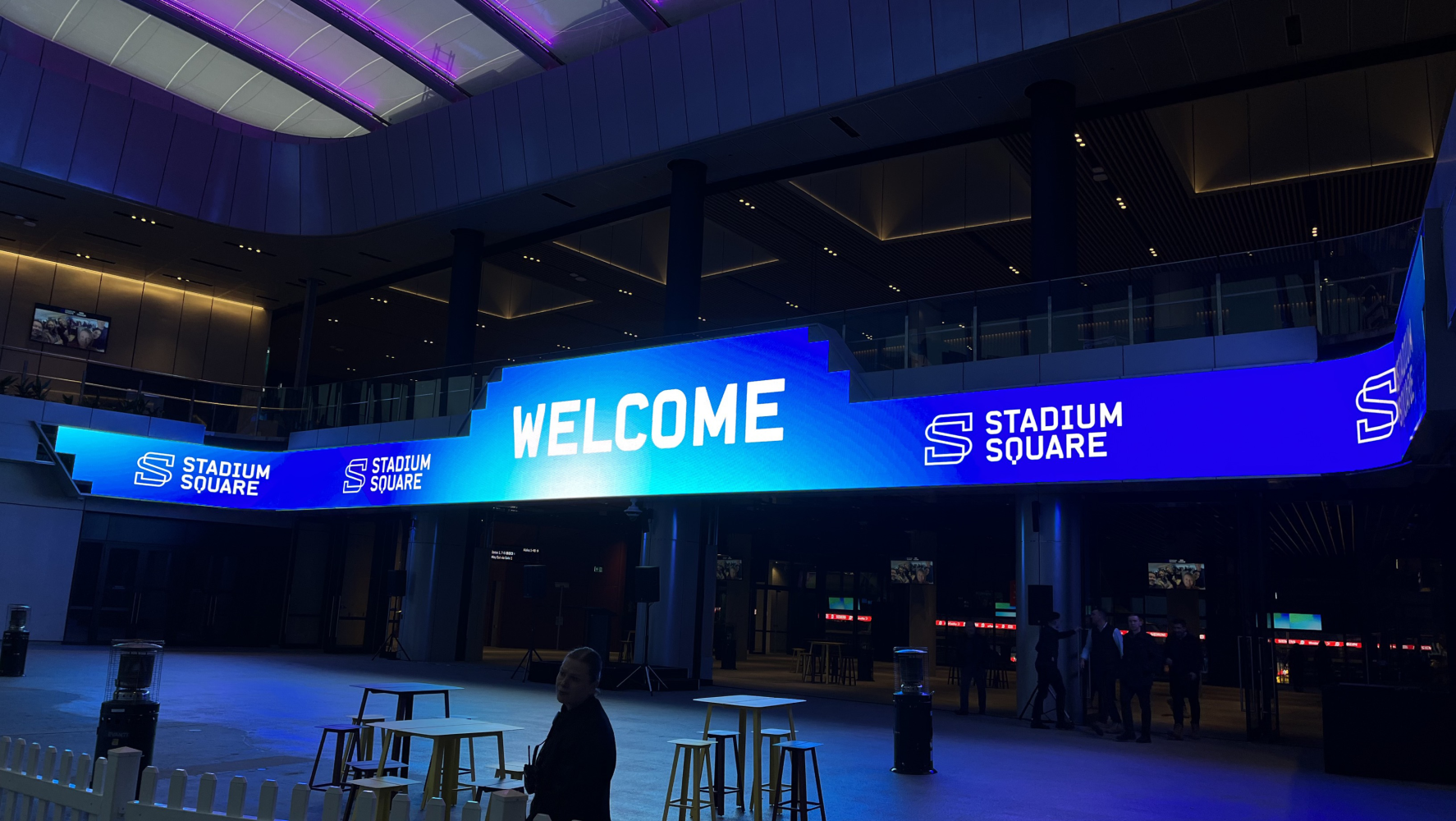

The Stadium Square LED is a large screen above the Gate 2 & 3 entrance to Marvel Stadium.

Make sure to read the specs carefully as well as follow the best practice guidelines on this page.

If you require assistance understanding how to create content or need help designing content, MKTG Creative is here to help.

Stadium Square LED Spec

You must create content for ALL THREE layouts to accomodate the various uses of the screen.

Full + Wayfinding + Vision

As this asset has a unique shape and delivery method, we have created a Photoshop template and an After Effects template to help with content creation and delivery.

Spec 1 - Full layout

The ‘Full’ layout utilises the whole screen.

Full layout
Full layout - Example content
Full layout - Example render

Spec 2 - Wayfinding layout

The ‘Wayfinding’ layout has a 48 pixel clear zone to display venue information.

You will not need to create the wayfinding information.

Wayfinding layout
Wayfinding layout - Example content
Wayfinding layout - Example render

Spec 3 - Vision layout

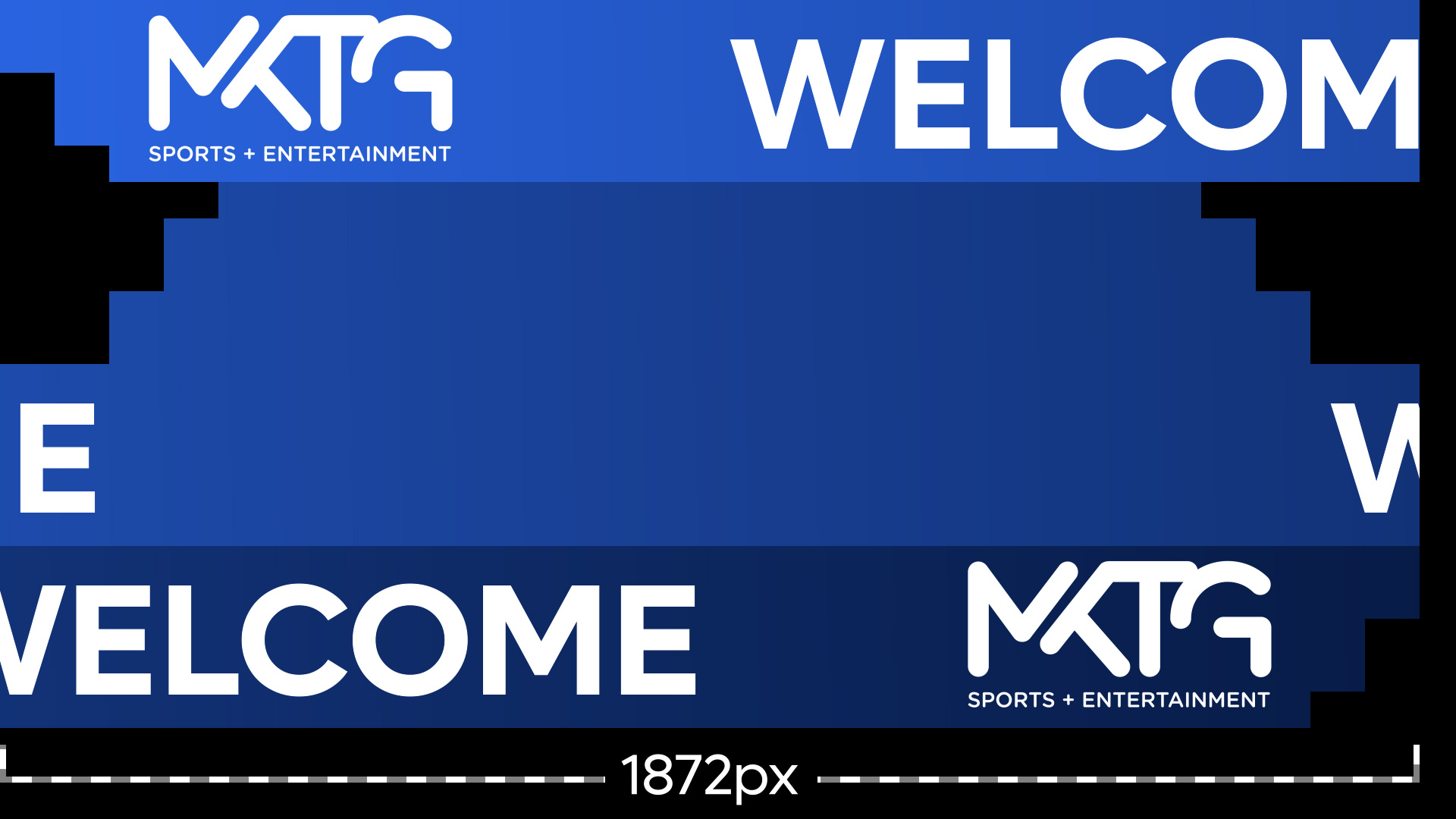

The ‘Vision’ layout displays video content in the middle 854 x 480 of the screen.

Do no have logos or text overlapping this space, as they will be hidden behind the live feed.

Animations must not be overly distracting due to their proximity to vision.

If supplying video or image content for the middle section, follow the big screen specs.

Vision layout
Vision layout - Example content
Vision layout - Example render

Dimensions

Content dimensions Render dimensions
5616 x 480
1920 x 1080

File format

Content FPS File type Codec Duration
Video
25
.mp4
H.264
30 seconds
Static
-
.jpg or .png
RGB - 72dpi
-

MKTG Drop asset

Assets Commercial and events
Spec 1 - Full layout
Spec 2 - Wayfinding layout
Spec 3 - Vision layout
Marvel Stadium Square LED

All three required layouts are uploaded to the one MKTG Drop listing

Examples

Submission & Deadlines

All content is submitted via our content management portal MKTG Drop.

Instructions for uploading and re-using content via MKTG Drop can be found here.

If you are new to MKTG Drop, you can request a log in with the MKTG Drop Team.

All assets will need to be provided to MKTG 5 business days before the first event.

Contact MKTG immediately if you are unable to meet this deadline.
