Introduction
360° specs are for Cricket Australia Event Presentation content only.
Tile spec can also be used for this allocation.
The 360° Parapet LED asset refers to the digital signage covering the full canvas of upper level parapet LED.
Submission & Deadlines
All content is submitted via our content management portal MKTG Drop.
Instructions for uploading and re-using content via MKTG Drop can be found here..
Digital content deadline
Print deadline
6 weeks before first display
6 weeks before first display
Contact MKTG immediately if you are unable to meet these deadlines.
Late content may not be able to be displayed.
360° Parapet LED specs
The 360° spec creates unique content for each section of the LED around the stadium.
This asset must be animated and not have any stationary components ie. content should have a horizontal scroll. This is to account for the Sight Screen blackouts, camera baskets and physical stadium breaks.
Some moments may loop several times when played, so we recommend making your content seamlessly loop back to the start.
Review and follow our best practices guide to ensure your content displays correctly at the stadium. Example videos and images are available for reference..
Dimensions
| Tile | Dimensions |
|---|---|
|
Tile 1 |
9,360 x 90 |
|
Tile 2 |
3,960 x 90 |
|
Tile 3 |
2,640 x 90 |
|
Tile 4 |
12,900 x 90 |
|
Tile 5 |
12,900 x 90 |
|
Tile 6 |
4,920 x 90 |
|
Tile 7 |
6,240 x 90 |
|
Tile 8 |
2,400 x 90 |
|
Tile 9 |
14,460 x 90 |
|
Tile 10 |
14,460 x 90 |
|
Tile 11 |
7,440 x 90 |
|
Tile 12 |
5,520 x 90 |
|
Tile 13 |
13,920 x 90 |
|
Tile 14 |
14,400 x 90 |
|
Tile 15 |
6,600 x 90 |
|
Tile 16 |
7,320 x 90 |
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
50 |
.mp4 |
H.264 |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – MCG |
Dimensions
| Tile | Dimensions |
|---|---|
|
Level 2 – Tile 1 |
13728 x 80 |
|
Level 2 – Tile 2 |
4800 x 80 |
|
Level 2 – Tile 3 |
5544 x 80 |
|
Level 2 – Tile 4 |
6432 x 80 |
|
Level 2 – Tile 5 |
6432 x 80 |
|
Level 2 – Tile 6 |
5532 x 80 |
|
Level 2 – Tile 7 |
4788 x 80 |
|
Level 3 – Tile 1 |
14910 x 60 |
|
Level 3 – Tile 2 |
14910 x 60 |
|
Level 3 – Tile 3 |
14910 x 60 |
|
Level 3 – Tile 4 |
14910 x 60 |
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
50 |
.mp4 |
H.264 |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – Marvel |
Dimensions
| Tile | Dimensions |
|---|---|
|
Tile 1 |
14,976 x 80 |
|
Tile 2 |
16,192 x 80
|
|
Tile 3 |
10,848 x 80 |
|
Tile 4 |
12,160 x 80 |
|
Tile 5 |
1,536 x 80 |
|
Tile 6 |
1,536 x 80 |
|
Tile 7 |
1,536 x 80 |
|
Tile 8 |
1,536 x 80 |
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
50 |
.mov |
ProRes or Animation |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – Adelaide |
Deliverables Dimensions
| Dimensions |
|---|
|
15,144 x 96 |

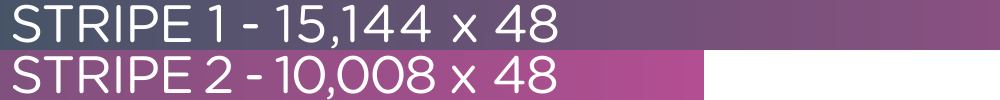

Stripe Dimensions
Break the full-width composition (25,152 x 48) into 2 sections and stack as per the diagram.
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
50 |
.mp4 or .mov |
H.264, ProRes or Animation |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – Perth |
Dimensions
| Tile | Dimensions |
|---|---|
|
Tile 1 |
9,880 x 72 |
|
Tile 2 |
9,200 x 72 |
|
Tile 3 |
8,960 x 72 |
|
Tile 4 |
7,120 x 72 |
|
Tile 5 |
8,480 x 72 |
|
Tile 6 |
11,160 x 72 |
|
Tile 7 |
8,920 x 72 |
|
Tile 8 |
12,120 x 72 |
Tile map
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
25 |
.mp4 or .mov |
H.264, ProRes or Animation |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – SCG |
Dimensions
| Tile | Dimensions |
|---|---|
|
Tile 1 |
3,334 X 96 |
|
Tile 2 |
3,334 X 96 |
|
Tile 3 |
3,334 X 96 |
|
Tile 4 |
3,000 X 96 |
|
Tile 5 |
3,000 X 96 |
|
Tile 6 |
3,920 X 96 |
|
Tile 7 |
3,920 X 96 |
|
Tile 8 |
3,920 X 96 |
|
Tile 9 |
3,920 X 96 |
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
30 |
.mp4 |
H.264 |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – Gabba |
Dimensions
| Tile | Dimensions |
|---|---|
|
Tile 1 |
6160 x 72 |
|
Tile 2 |
3200 x 72 |
|
Tile 3 |
6640 x 72 |
|
Tile 4 |
3920 x 72 |
|
Tile 5 |
3040 x 72 |
|
Tile 6 |
2080 x 72 |
|
Tile 7 |
2080 x 72 |
|
Tile 8 |
1600 x 72 |
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
30 |
.mp4 |
H.264 |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – Showgrounds |
Dimensions
| Tile | Dimensions |
|---|---|
|
Tile 1 – Lower Hickey |
3,800 x 90 |
|
Tile 2 – Lower Hickey |
3,800 x 90 |
|
Tile 3 – Upper Hickey |
3,200 x 90 |
|
Tile 4 – Upper Hickey |
3,200 x 90 |
|
Tile 5 – Selwood/North |
5472 x 72 |
|
Tile 6 – Selwood/North |
6528 x 72 |
File format
| FPS | File type | Codec | Duration |
|---|---|---|---|
|
30 |
.mp4 |
H.264 |
Unspecified |
MKTG Drop asset
| MKTG Drop Asset |
|---|
|
Parapet 360 – Kardinia Park |
All content is submitted via our content management portal MKTG Drop.
Instructions for uploading and re-using content via MKTG Drop can be found here..
Examples
